Construction Planning and Progress
Where We Stand
Progress by Component Component
As of August 2026, the 22.14 MW Balephi-A Hydropower Project has reached the following overall physical progress. A component-wise breakdown follows below.
Overall Physical Progress
90.58%
90.58%
Access Road90%
About 17 km of access road from Balephi Bazaar to the headworks and powerhouse has been upgraded and protected.
Land Acquisition & Compensation95%
Land for the powerhouse, camp and penstock alignment has been acquired; final penstock parcels are being finalized.

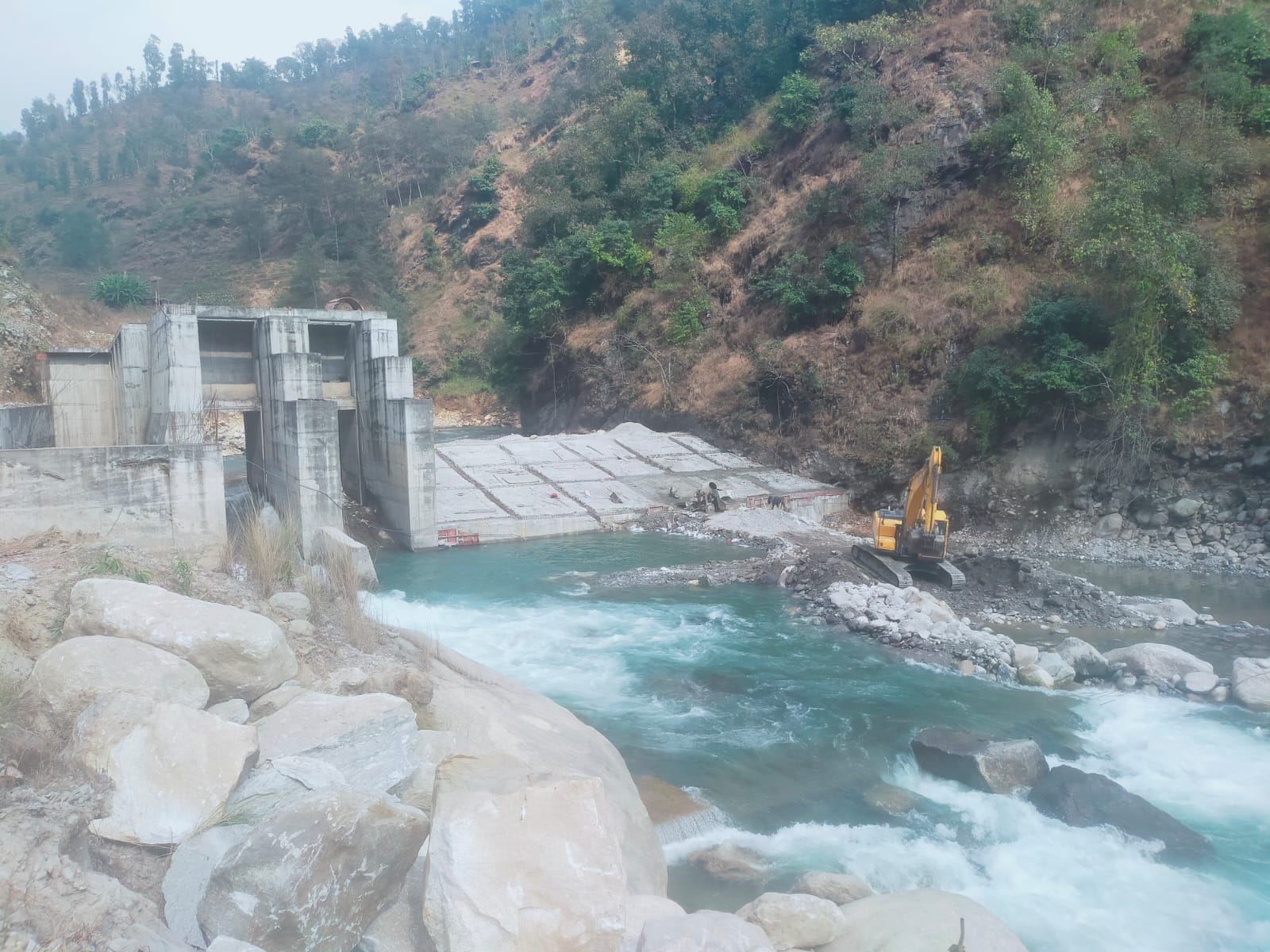

Headworks100%
Weir, intake, under-sluice, spillway and gravel trap are fully constructed at the headworks site.

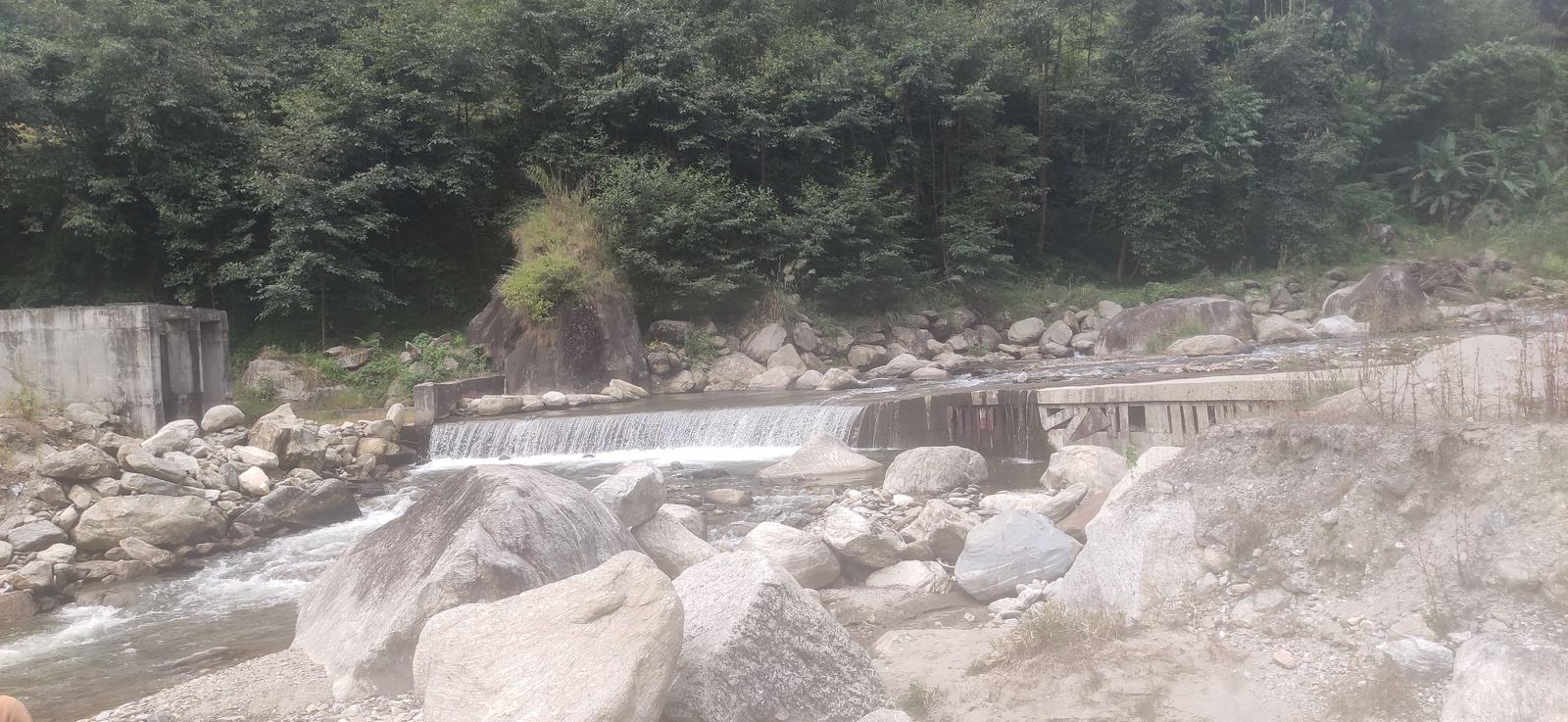

Approach Canal100%
The 82 m approach canal connecting the settling basin and gravel trap is fully complete.

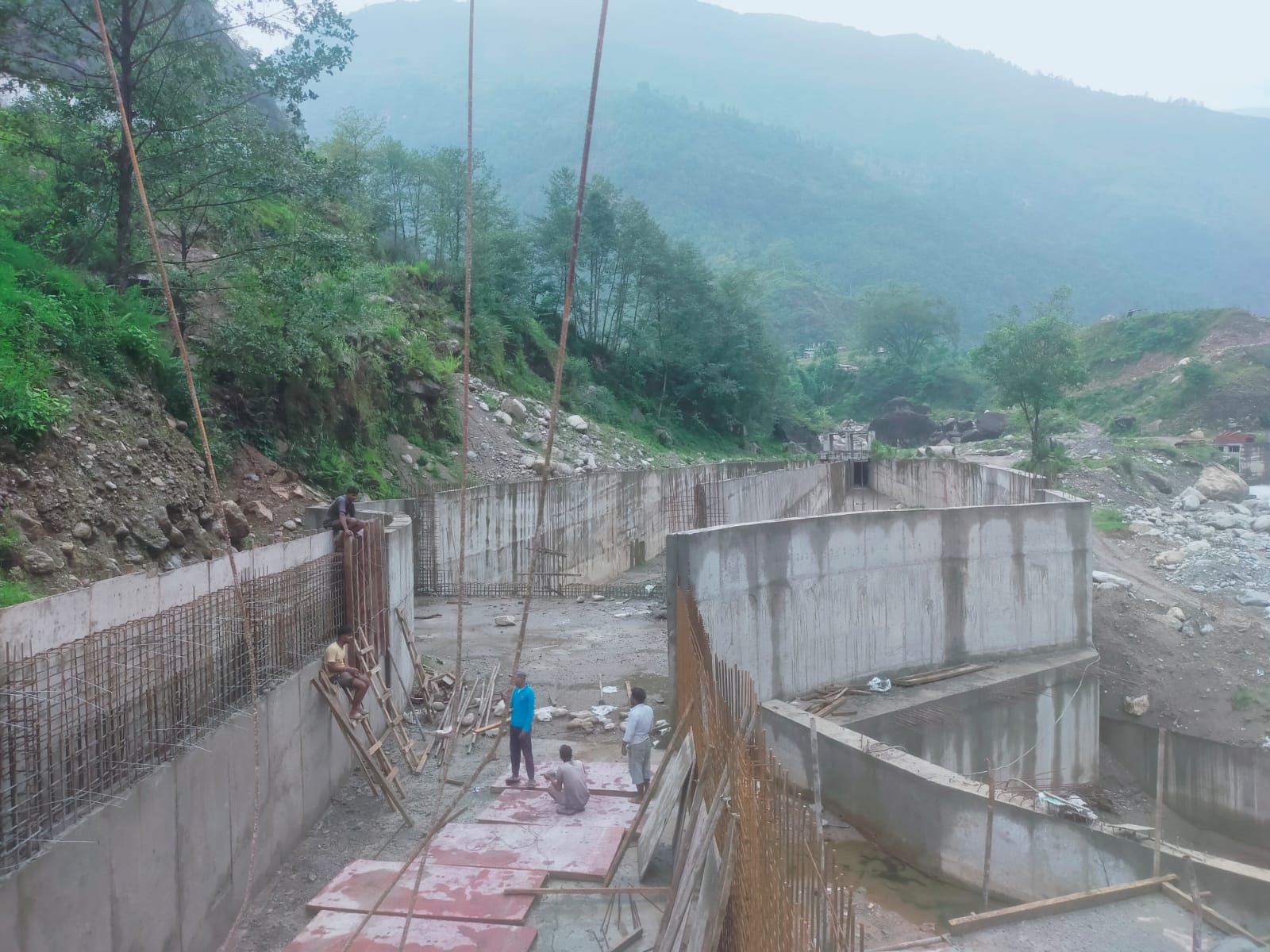

Settling Basin100%
Designed to trap 90% of 0.40 mm particles; excavation, main body, pond and hopper wall are complete.
Headrace Canal95%
910 m of the 948 m headrace canal linking the settling basin to the forebay is complete.
Forebay100%
Site clearance, bottom slab, side walls and bellmouth installation are fully complete.

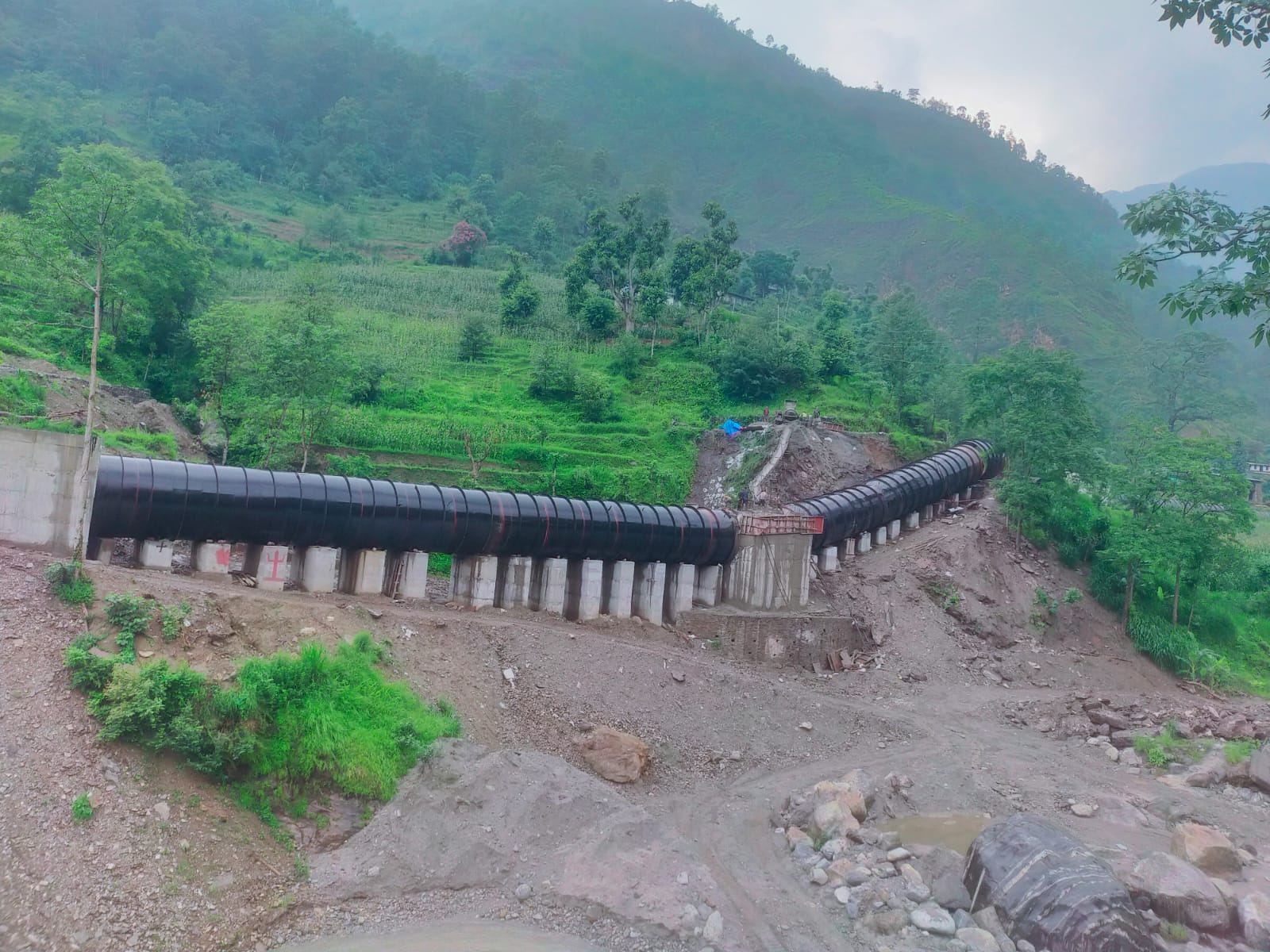

Penstock, Anchor Block & Saddle Support60%
Site clearance, excavation and construction of saddle supports and anchor blocks are underway.
Surge Tank100%
The 11 m diameter, 14 m high surge tank has been fully excavated and constructed.

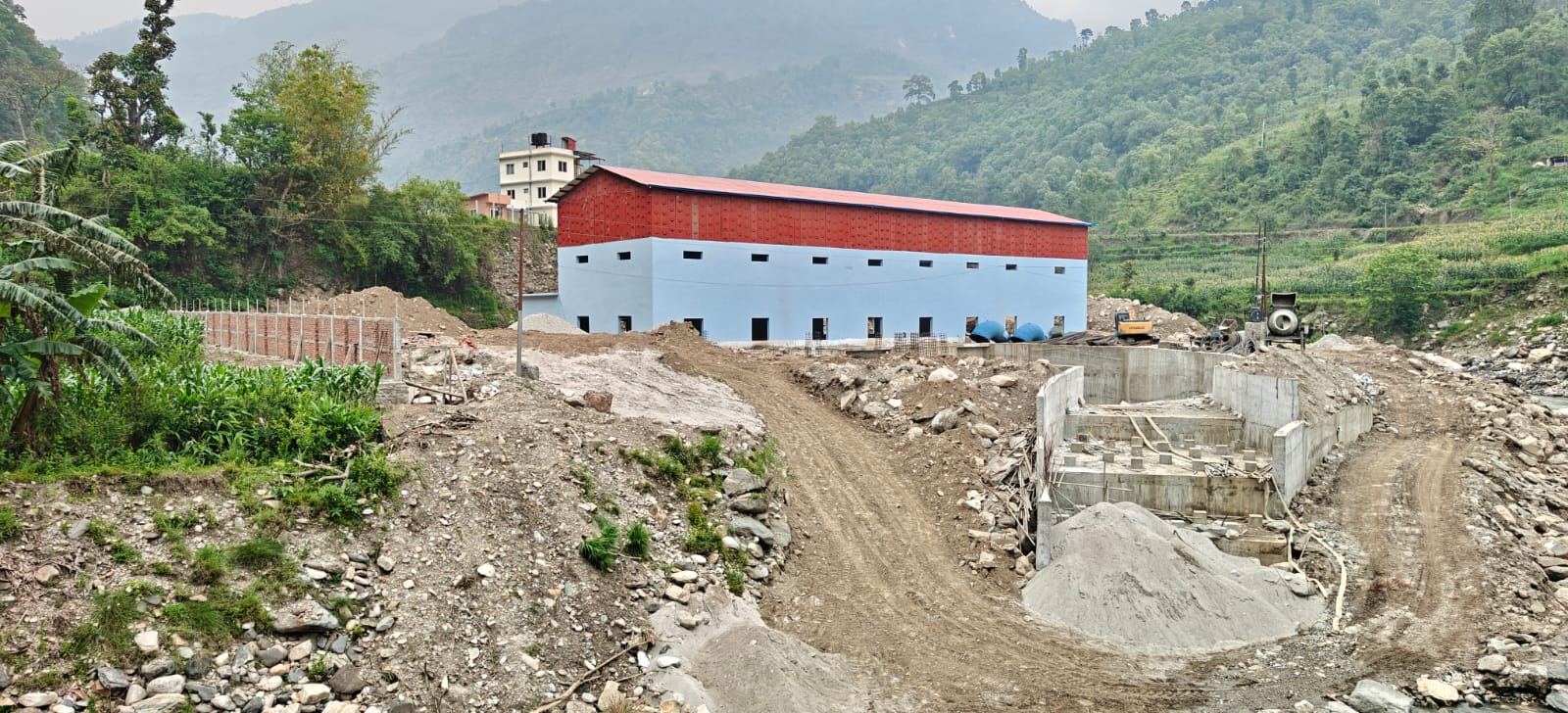

Powerhouse95%
Foundation, earthmat, PCC works and the superstructure are complete; finishing works continue.
Protection Works70%
Stone masonry retaining structures are under construction to protect key project areas.
Social Mitigation100%
About 9 km of local roads, an irrigation canal, and protection of the Mahadev Mandir and a local school are complete.
Infrastructure & Site Camp80%
Site camps, stores, stockyards and fabrication workshops near the headworks and powerhouse are in place.
Hydromechanical Works70%
Of the 2,945 m combined headrace and penstock pipe, about 2,061 m has been rolled and erected.
Electromechanical Works70%
Turbine and generator components, including the draft tube and MIV valve, are being delivered and installed.
Transmission Line67%
About 6 km of the 9 km, 33kV double-circuit line to the Pangtang substation has been erected.
